AWS IVS gives you managed RTMP ingest, LL-HLS transcode, and a built-in 4-hour DVR window. CloudFront gives you a global CDN. Lambda gives you a cold-start-under-200ms API. Put them together with a bit of Terraform and you get a live streaming platform that costs nothing at rest, scales automatically, and lets viewers rewind up to four hours - no S3 recording bucket, no media server, no operational overhead.

This post walks through the architecture of Streamline, the design decisions behind it, and why certain pieces are wired together the way they are.

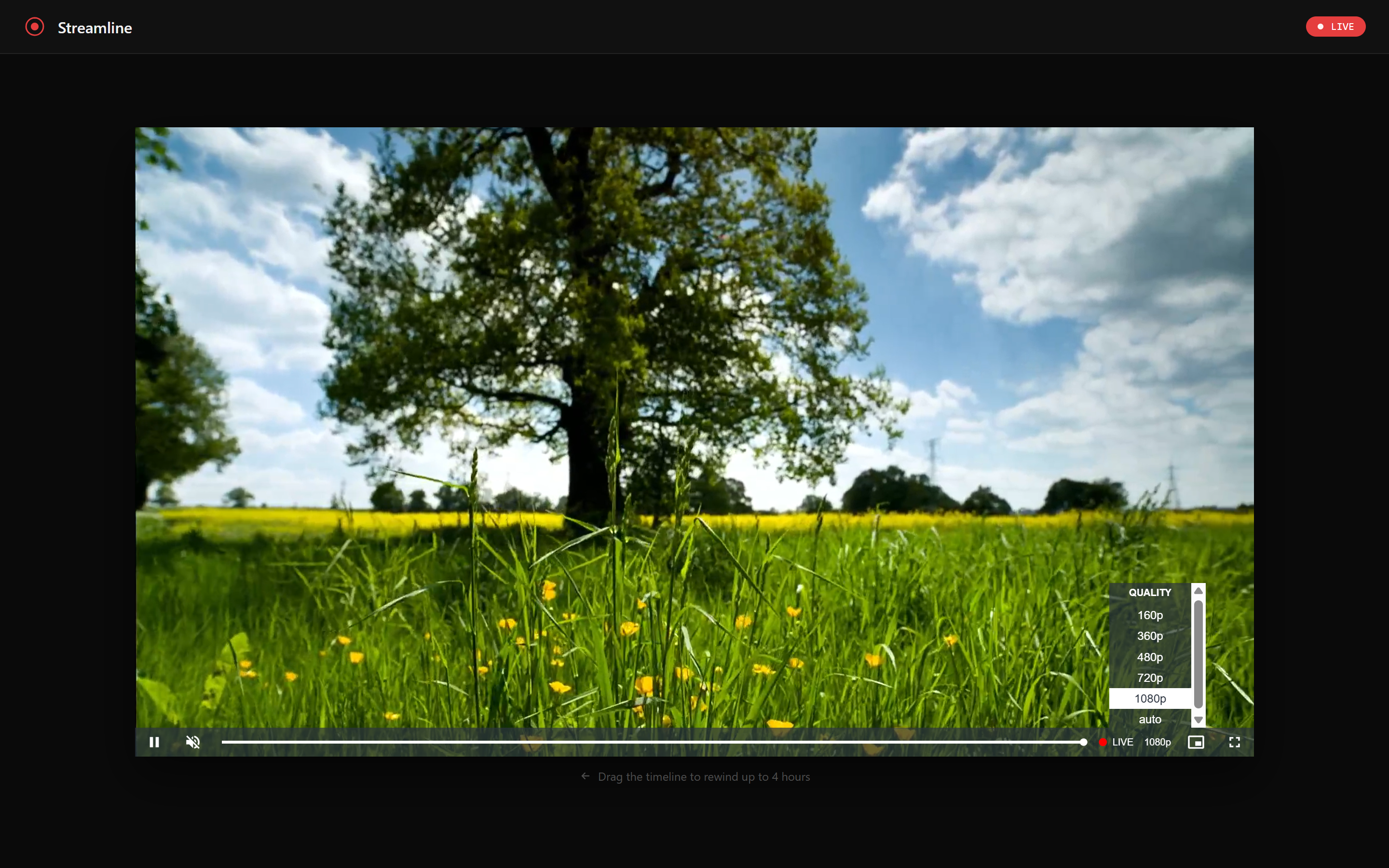

Streamline player with video quality selector
The Streamline player — Video.js with LL-HLS, quality selector, and a DVR scrubber that lets viewers rewind up to four hours.
OBS Studio broadcasting to the Streamline RTMP endpoint
OBS Studio configured with the IVS ingest endpoint and stream key - two fields, then you're live.

Architecture

The whole system fits in one diagram. A broadcaster pushes RTMP to IVS. Viewers hit a single CloudFront distribution that fans out to three origins depending on the URL path. A side channel - EventBridge → Lambda → SSM - keeps stream state without any polling.

Streamline architecture — broadcaster to viewer via IVS and CloudFront, with EventBridge/Lambda/SSM state side channel

There is no media server. There is no recording bucket. IVS handles ingest and transcode entirely on its own infrastructure. CloudFront is the only public surface - the S3 bucket and Lambda function URL both reject requests that don’t come through CloudFront.

The DVR window

IVS STANDARD channels maintain a rolling 4-hour DVR window internally. There is no recording_configuration_arn, no S3 bucket, no retention policy. The HLS manifest IVS generates contains the full seekable range. Video.js reads it automatically when you set liveui: true - no special URL parameters or player configuration required beyond that flag.

While a stream is live, a viewer can drag the progress bar all the way back to hour zero. Clicking the LIVE button snaps back to the live edge instantly. When the stream ends, the DVR segments are discarded.

DVR timeline — drag to rewind up to 4 hours, LIVE button snaps back to the edge

Configuring OBS is a two-field job: paste the ingest_endpoint and the stream_key (retrieved from Secrets Manager)

OBS stream settings — Server and Stream Key fields

How request routing works

A single CloudFront distribution handles three completely different types of traffic. The path prefix determines which origin receives the request:

Request routing - CloudFront fans out to S3 (player page), Lambda (status API), and IVS (HLS segments) based on path prefix

Each origin has its own cache policy:

  • S3 (/*): index.html gets must-revalidate (always fresh); other assets get immutable (hash in filename, 1-year TTL)
  • Lambda (/api/*): no-cache - the Lambda itself has a 10-second in-memory cache, so CloudFront doesn’t need to
  • IVS (/hls/*): 5-second TTL - long enough to reduce origin hits, short enough that the live edge stays fresh

Stream state: EventBridge + SSM instead of polling

The player needs to know whether a stream is live before it tries to load an HLS manifest. The naive approach - calling IVS GetStream on every API request - adds unnecessary latency and cost at scale. The approach here is event-driven:

Stream state machine - idle and live states driven by IVS events via EventBridge and Lambda

When a broadcaster goes live, IVS fires a Stream Start event to EventBridge. EventBridge invokes Lambda, which writes {"status":"live","updatedAt":"..."} to an SSM Parameter. When the stream ends or fails, the same path runs in reverse.

The /api/stream handler reads this SSM parameter (with a 10-second module-level cache) and returns the current state to the player. The Lambda function never polls IVS directly during normal operation - IVS pushes state changes to it. If the SSM parameter doesn’t exist yet (stream has never been live), ParameterNotFound is caught and mapped to idle.

Security: why the Lambda rejects direct requests

The Lambda function URL is configured with authorization_type = "AWS_IAM". Access is granted exclusively to cloudfront.amazonaws.com with a condition scoped to this specific distribution’s ARN. CloudFront uses an Origin Access Control (OAC) to sign every request to the Lambda origin with SigV4 before forwarding it.

The practical result: requests arriving at the function URL from any other source - curl, another Lambda, another CloudFront distribution - are rejected by IAM before they reach the function code. The same OAC pattern applies to S3, where the bucket policy blocks all public access and only allows requests signed by this distribution’s OAC.

Infrastructure as code

Five focused Terraform modules:

Module Responsibility
ivs IVS channel, stream key, Secrets Manager secret
s3 Frontend bucket, CloudFront OAC
lambda IAM role, SSM parameter, function, alias, function URL, EventBridge rule
cloudfront Distribution, three origins, cache behaviours, optional custom domain wiring
dns ACM certificate (us-east-1), Route 53 validation records and alias
monitoring CloudWatch alarms for Lambda errors/throttles and CloudFront 5xx; SNS topic

The S3 bucket policy and the Lambda permission for CloudFront live in the root module. This is intentional: both need values from two different modules (s3/cloudfront and lambda/cloudfront respectively), and putting them in either child module would create a circular dependency. Wiring them at the root lets Terraform resolve the dependency order in a single apply.

State locking uses Terraform 1.10’s native S3 locking (use_lockfile = true). No DynamoDB table required.

Deployment pipeline

Every production deploy is triggered by a semver tag:

git tag v1.0.0 && git push origin v1.0.0

The workflow runs three jobs. prepare extracts the version and detects which paths changed. deploy-frontend and deploy-lambda run in parallel and only execute if their respective paths changed since the previous tag.

deploy-lambda builds the TypeScript source, prunes devDependencies, zips dist/ and node_modules/, uploads the zip to Lambda, waits for propagation, publishes an immutable version snapshot, and points the live alias at it. Every Lambda version is immutable — rolling back is a single AWS CLI call:

aws lambda update-alias \
  --function-name streamline-prod \
  --name live \
  --function-version PREVIOUS_VERSION_NUMBER

GitHub Actions authenticates to AWS via OIDC. There are no long-lived AWS credentials stored as secrets.

Getting started

git clone https://github.com/mguarinos/streamline.git
cd streamline
./scripts/bootstrap.sh          # creates state bucket, OIDC provider, deploy role
cd terraform
terraform init -backend-config=backend.hcl
terraform apply
terraform output                # note the ingest endpoint and stream key command

Full setup instructions are in the README.
